Board Class Reference

#include <board.h>

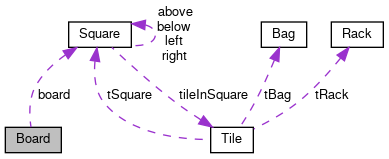

Collaboration diagram for Board:

Public Member Functions
	Board ()
	~Board ()
Square *	getSquare (int r, int c)
void	show ()
bool	placeTile (Tile *t, int r, int c)
void	placeTileStr (Rack *rack, std::vector< Tile * > tilesInStr, int r, int c, char dir)
Tile *	retrieve (int r, int c)

Private Attributes
Square *	board [NUM_ROWS][NUM_COLS]
std::array< std::string, 5 >	sqStrings

Detailed Description

Implements the Scrabble board

The board is a 2D matrix of pointers to Square objects

Definition at line 20 of file board.h.

Constructor & Destructor Documentation

Board()

Board::Board

(

)

Board constructor. Fills the 2D board matrix with pointers to Square objects of approproate type. Symmetry of the board is used to easily construct the board. It is done in 2 steps- four square portions and then the 4 strips

Definition at line 18 of file board.cc.

Here is the call graph for this function:

~Board()

Board::~Board

(

)

Clean up all squares on Board

Definition at line 109 of file board.cc.

Member Function Documentation

getSquare()

Square * Board::getSquare	(	int	r,
		int	c
	)

Get a square from the board

Parameters

r	Row where Square to be returned is
c	Column where Square to be returned is

Returns

A pointer to the Square that is requested

Exceptions

std::string

containing the error message

Definition at line 321 of file board.cc.

Here is the caller graph for this function:

placeTile()

bool Board::placeTile	(	Tile *	t,
		int	r,
		int	c
	)

Place a Tile on the Board

Parameters

t	Pointer to the tile to be placed
r	Row where the tile should be placed
c	Column where the tile should be placed

Returns

true if placed successfully, false otherwise

Exceptions

std::string

containing the error message

Definition at line 213 of file board.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

placeTileStr()

void Board::placeTileStr	(	Rack *	rack,
		std::vector< Tile * >	tilesInStr,
		int	r,
		int	c,
		char	dir
	)

Place a series of Tiles on the Board

Parameters

rack	Pointer to the Rack from where the Tiles are coming
tilesInStr	A vector of pointers to the Tiles to be placed
r	Row where the first Tile goes
c	Column where the first Tile goes
dir	Direction of placement ('h'/'v')

Exceptions

std::string

containing the error message

Definition at line 246 of file board.cc.

Here is the call graph for this function:

Here is the caller graph for this function:

retrieve()

Tile * Board::retrieve	(	int	r,
		int	c
	)

Retrieve a Tile from the Board

Parameters

r	Row where Tile to be retrieved is
c	Column where Tile to be retrieved is

Returns

A pointer to the returned Tile, nullptr if unsuccessful

This function shall not throw exceptions.

Definition at line 301 of file board.cc.

Here is the caller graph for this function:

show()

void Board::show

(

)

"Pretty print" the board to stdout

Definition at line 121 of file board.cc.

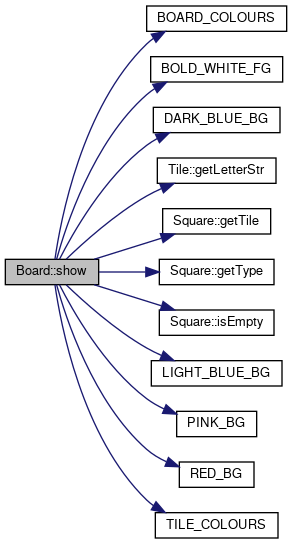

Here is the call graph for this function:

Member Data Documentation

board

Square* Board::board[NUM_ROWS][NUM_COLS]

private

Definition at line 22 of file board.h.

sqStrings

std::array<std::string, 5> Board::sqStrings

private

Definition at line 23 of file board.h.

---

The documentation for this class was generated from the following files:

• include/board.h
• src/board.cc
